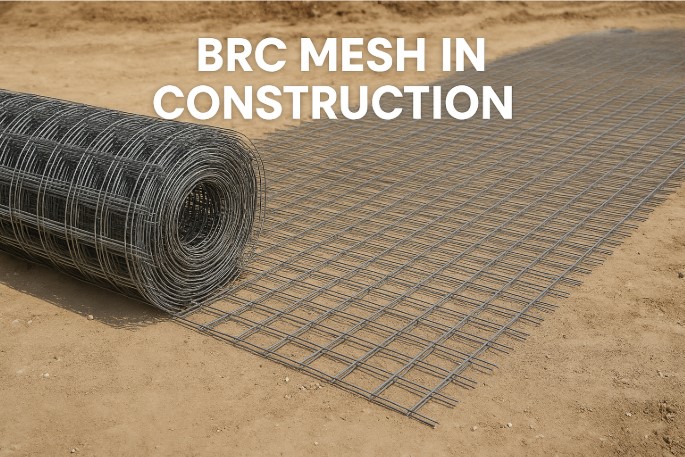

All You Need to Know About BRC Mesh in Construction

What is BRC Mesh?

BRC stands for:

B – British
R – Reinforcement
C – Cloth (i.e., mesh)

Also known as welded wire mesh or reinforcement mesh, BRC Mesh is a steel mesh used in reinforcing concrete to improve its tensile strength, structural integrity, and resistance to cracking.

It is made of steel wires (4 mm to 12 mm in diameter), welded at their intersections to form a grid pattern — either square (e.g., 150x150 mm) or rectangular (e.g., 100x200 mm).

Types of BRC Mesh

There are several variations of BRC mesh based on manufacturing method and application:

✅ Electro-welded mesh – wires joined using electric resistance welding.
✅ Welded mesh (arc-welded) – joined via electric arc welding.
✅ Fabric mesh – also called woven wire mesh, commonly used in light-duty work.

Functions of BRC Mesh

BRC mesh serves crucial purposes in both residential and industrial construction:

Reinforces concrete to improve tensile strength.
Minimizes cracking and shrinkage during curing.
Improves durability and load resistance.
Enhances the stability of substructures, especially in German flooring systems.
Provides support in ribbed slab designs and concrete flooring.

Applications of BRC Mesh

BRC Mesh is versatile and widely used in various construction elements:

✅ Concrete slabs – floors, roofs, and foundations.
✅ Structural walls – retaining and basement walls.
✅ Beams and columns – especially in precast design.
✅ Bridges and overpasses
✅ Highway pavements
✅ Industrial floorings
✅ Precast concrete products

Benefits of Using BRC Mesh

Using BRC Mesh comes with multiple benefits for engineers, contractors, and site workers:

💰 Cost-effective – saves time and reduces labor costs.
⚡ Easy installation – comes in flat sheets or rolls.
🔄 Versatile – suitable for multiple applications.
🏋️ High strength-to-weight ratio
🛡️ Corrosion-resistant – especially when galvanized or epoxy-coated.

Standards & Specifications

To ensure quality and performance, BRC Mesh conforms to several national and international standards:

ASTM A185 – American standard for welded steel wire reinforcement.
BS 4483 – British standard for steel fabric reinforcement.
EN 10016 – European standard for steel rod and wire.
ISO 9001 – Quality management and production consistency.

Quote from the Field

“The use of BRC Mesh for German flooring regulates building settlement and enhances the strength and stability of the substructure.” – Benjineer

💡 Did You Know?

BRC Mesh is not just for horizontal work — it’s also widely used in vertical applications like walls and columns for added tensile strength and crack resistance!
